14+2 Beer Python – 50m Roll – 13mm Insulation

14+2 Beer Python – 50 Metre Roll

Professional 14+2 beer Python for larger multi-product draught beer dispense installations, supplied as a complete 50 metre continuous roll.

This Python contains 14 x 3/8" product lines together with 2 x 15mm recirculation lines, allowing up to fourteen individual product lines and the chilled water flow and return to run together within one insulated bundle.

The lines are surrounded by a 13mm wall of insulation, helping maintain product temperature between the cellar or cooling system and the dispense point.

With fourteen product lines available, this configuration is suited to larger commercial installations where a high number of draught products need to be carried between the cellar and bar or dispense point.

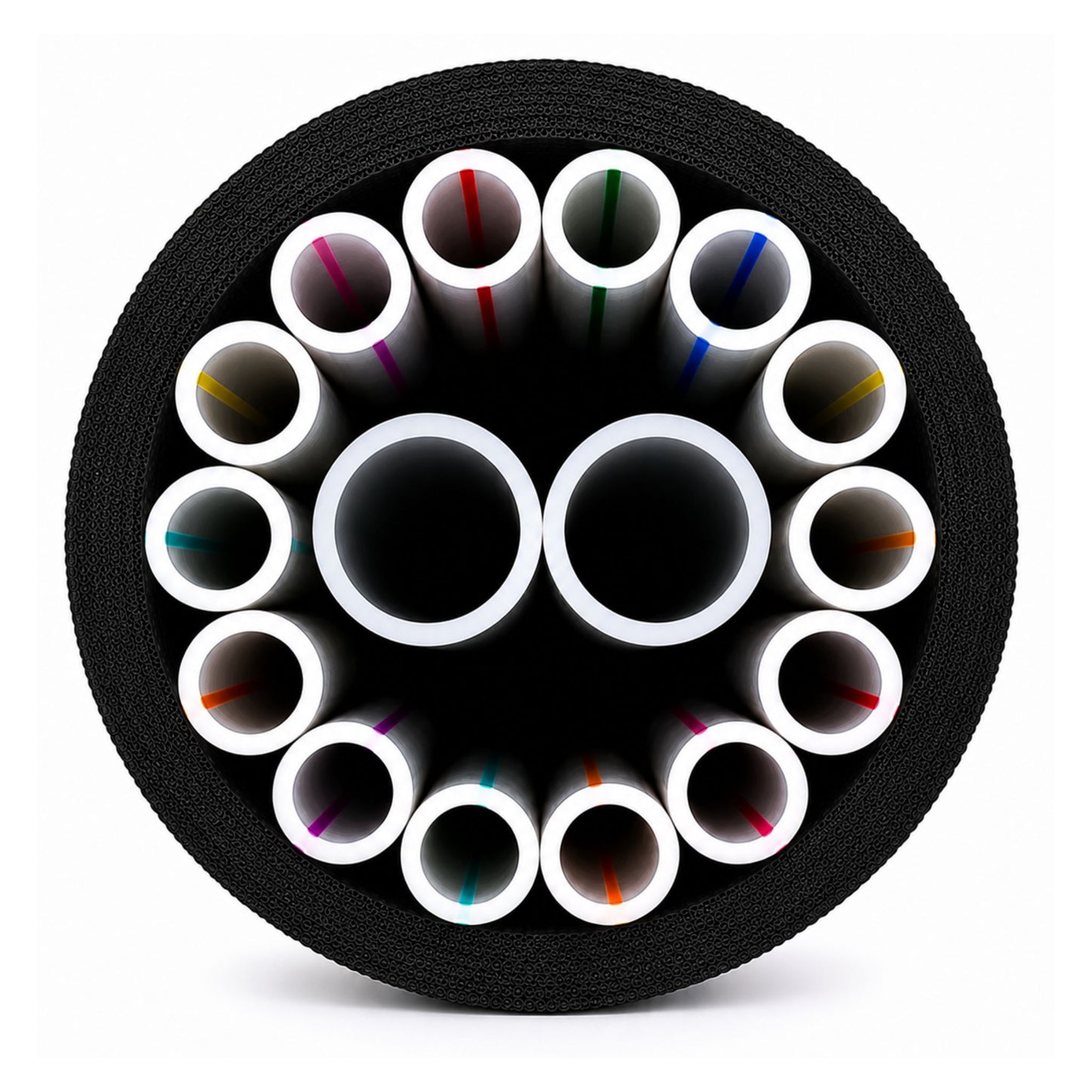

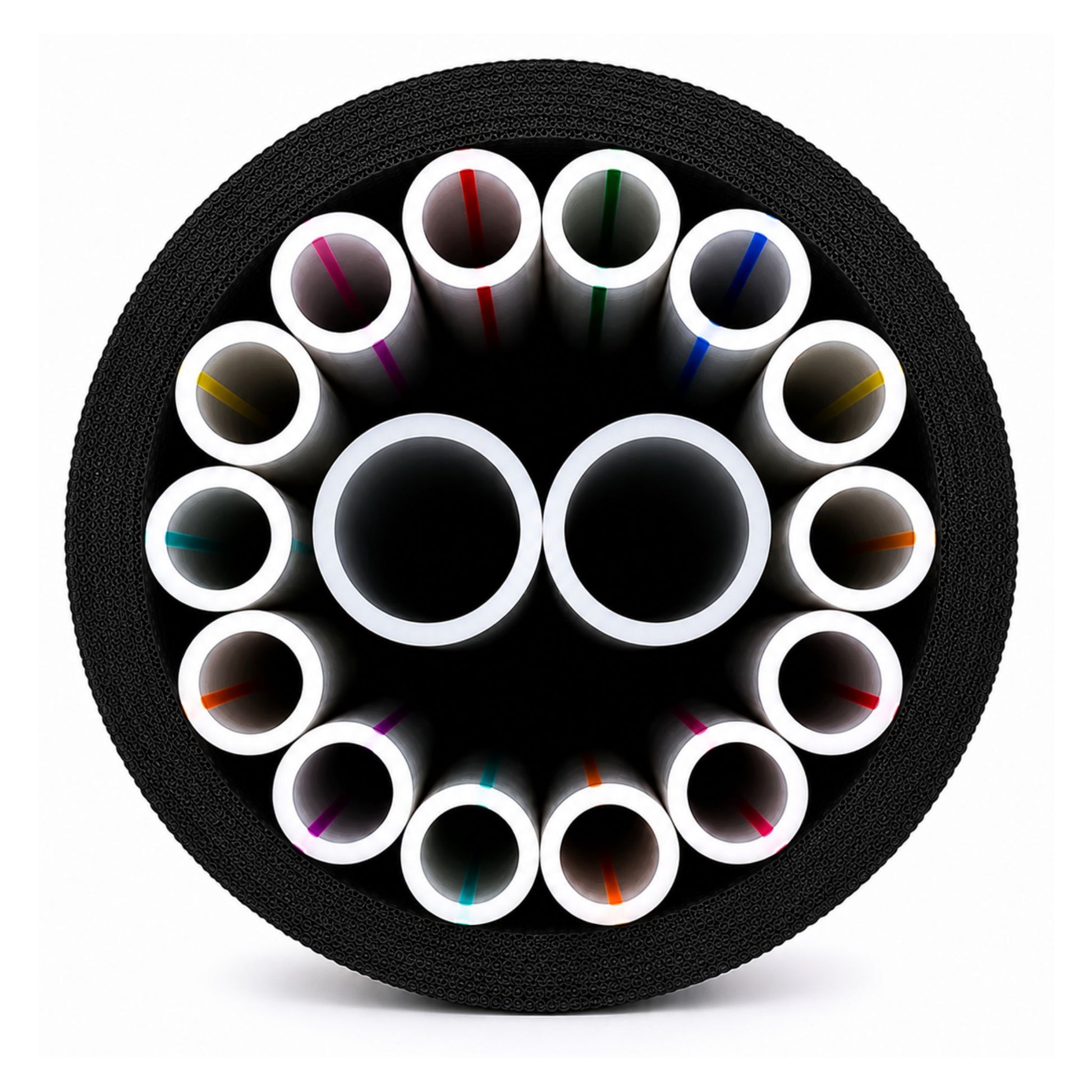

Please note: Cross-section image is for illustration purposes only. Actual appearance, tube colours and arrangement may vary.

14+2 Python Configuration

• 14 x 3/8" product lines
• 2 x 15mm recirculation lines
• 13mm insulation wall
• 50 metre continuous roll

What Does 14+2 Beer Python Mean?

The 14+2 configuration refers to the lines contained within the Python.

The fourteen 3/8" lines are used to carry individual draught products, while the two 15mm lines provide the flow and return for chilled water recirculation.

This allows multiple product lines and the cooling circuit to run together within a single insulated Python between the cellar or cooling system and the dispense point.

Where Is 14+2 Beer Python Used?

This larger configuration is suitable for multi-product draught beer installations including:

• Pubs and bars with a large draught range
• Multi-tap bars
• Hospitality venues
• Brewery and taproom installations
• Larger cellar-to-bar dispense systems
• Installations requiring up to fourteen product lines within one Python

Product Specifications

Configuration: 14+2
Product Lines: 14 x 3/8"
Recirculation Lines: 2 x 15mm
Insulation: 13mm wall
Length: 50 metres
Supply: One continuous 50m roll
Application: Draught beer dispense systems

Delivery Information

Please note: due to the size of this 50 metre roll, it is dispatched by pallet.

Pallet delivery helps protect the Python from being crushed, kinked or damaged during transport.

Collection is also available from Laws Drinks Systems in Sunderland.

If you require a shorter length, please contact us before ordering. We may have part rolls or shorter lengths available, depending on current stock.

Need a Different Beer Python?

We stock a range of beer Python configurations with different numbers of product lines, insulation specifications and roll lengths.

If you need a different configuration or are unsure which Python is suitable for your installation, please contact us and we'll be happy to advise on the options currently available.
