Complete Split Remote Beer Cooler System – 8 or 10 Coil
Complete Split Remote Beer Cooler System – 8 or 10 Coil
Couldn't load pickup availability
A complete split remote beer cooling system for multi-product draught beer installations, supplied with a V-180 HP cooler base, product coil pack and Standard remote heat dump.
Split cooling systems allow heat generated by the refrigeration system to be transferred away from the main cooler via a separate heat dump, making them particularly suitable for busy cellars and commercial dispense installations.

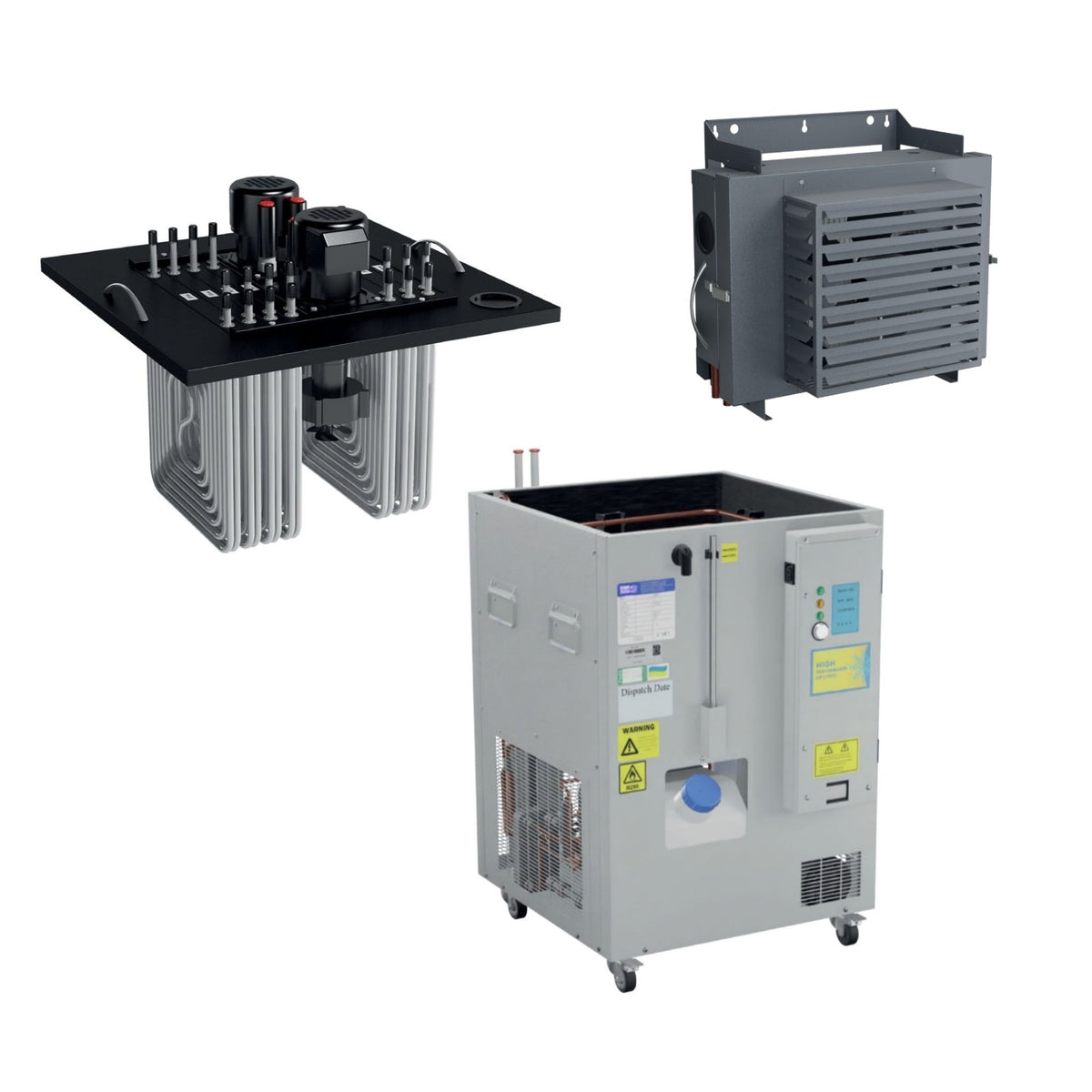

Complete System Includes
- V-180 HP split cooler base
- Choice of 8 or 10 coil product coil pack
- Standard remote heat dump
Coil Pack Options
8 Coil – 8 × 10m
Eight individual 10 metre product cooling coils.
10 Coil – 10 × 8m
Ten individual 8 metre product cooling coils.

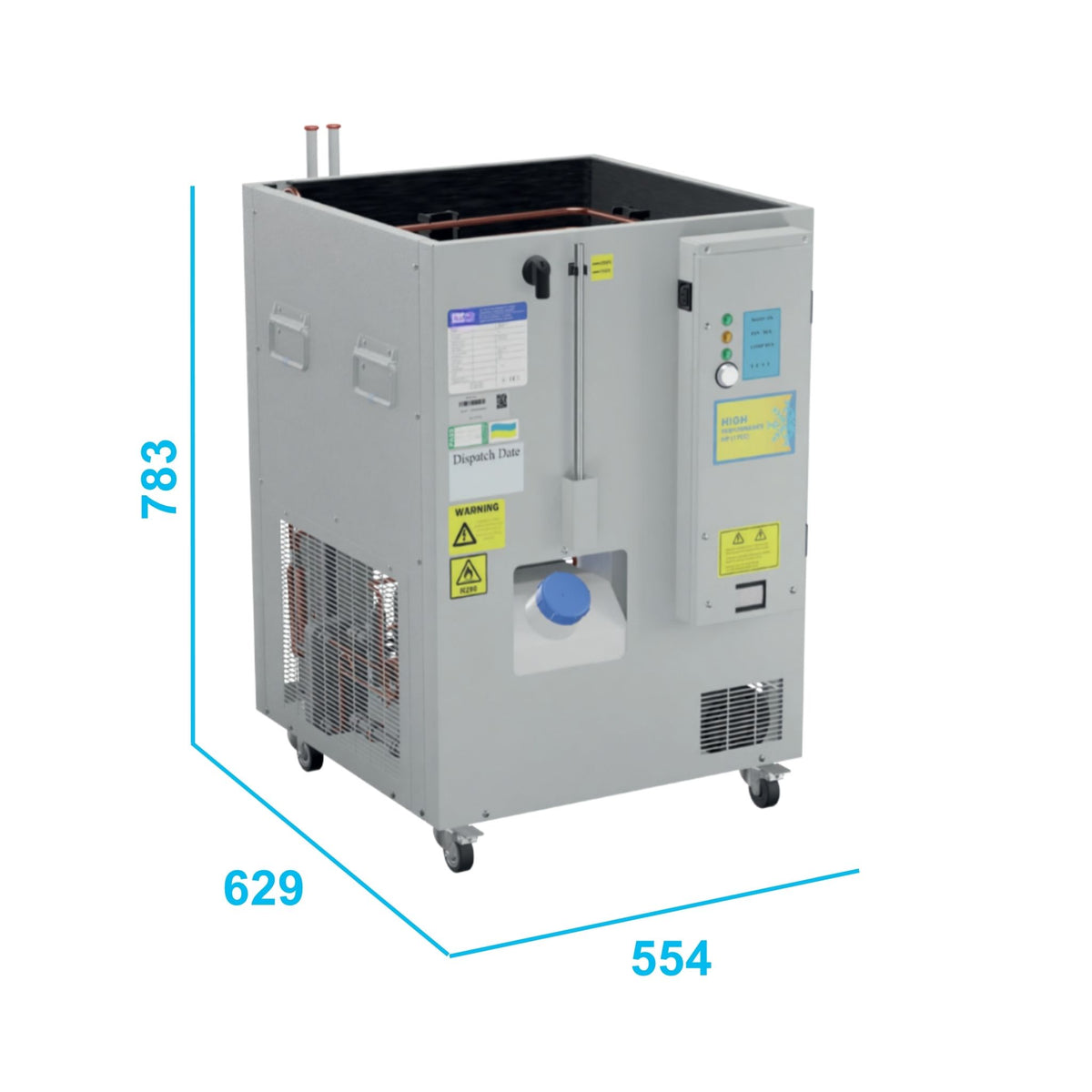

V-180 HP Cooler Base Specifications
| Specification | Details |
|---|---|
| Water bath capacity | 65 litres |
| Ice bank | 28 kg |
| Compressor | 16.10 cc (2/3 HP) |
| Cooling power | 1109 W (954 kcal/h) |
| Power consumption | 1050 W |
| Thermostat | Digimech or two pcs. |
| Evaporator | Stainless steel / copper |
| Net weight | 52 kg |
| Height | 783 mm |
| Width | 554 mm |
| Depth | 629 mm |

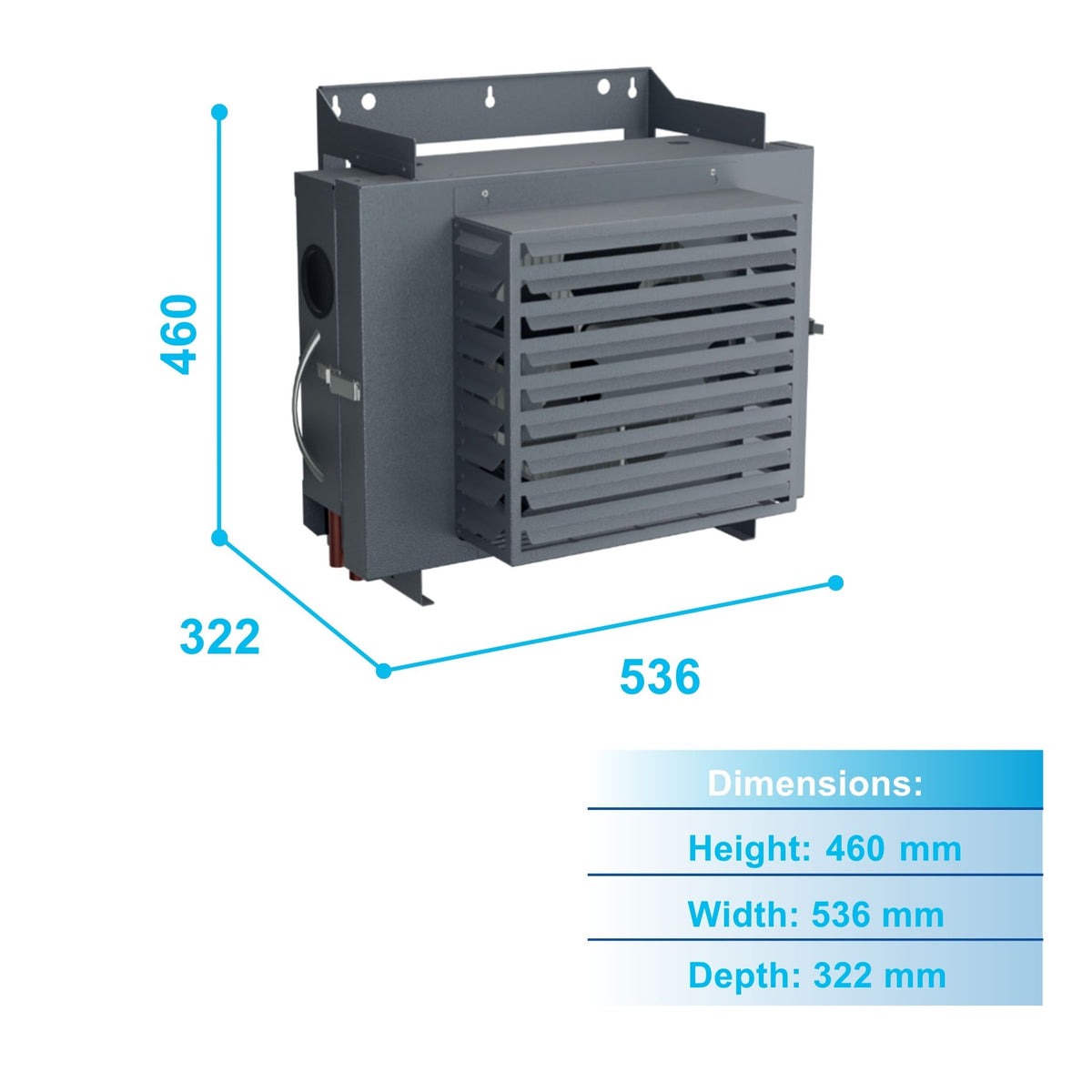

Standard Heat Dump Specifications
| Specification | Details |
|---|---|
| Nominal voltage | 24 V |
| Power consumption | 60 W |
| Heat load | 2400 W |
| Pass | 3 pass |
| Air quantity | 650 m³/h |
| Net weight | 12 kg |
| Height | 460 mm |
| Width | 536 mm |
| Depth | 322 mm |

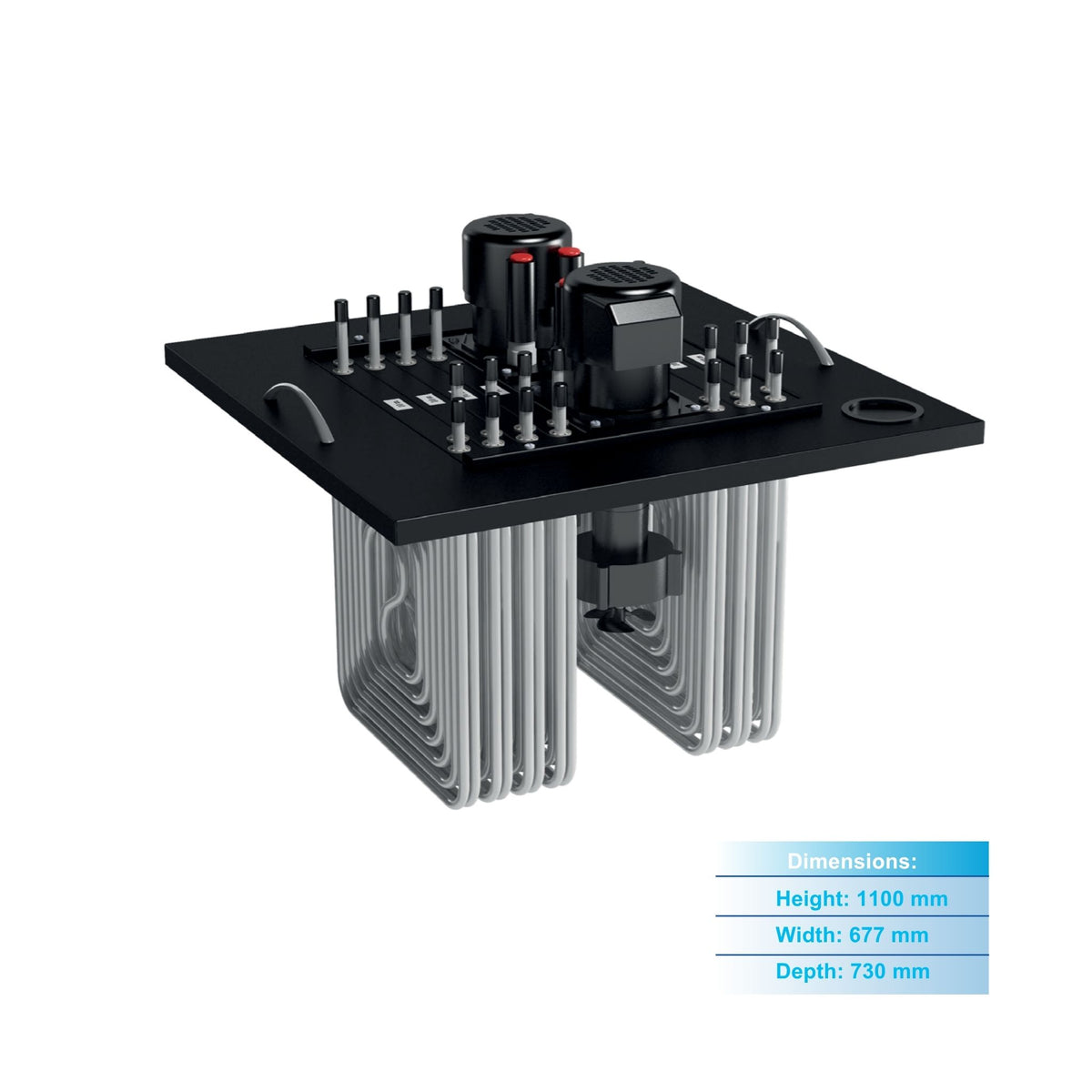

Coil Pack Dimensions
- Height: 1100 mm
- Width: 677 mm
- Depth: 730 mm
How a Split Remote Beer Cooler Works
Unlike a conventional remote cooler which releases heat around the cooler itself, a split system uses a separate heat dump to transfer heat away from the main cooling unit.
This makes a split system particularly useful where heat build-up around the cooler could affect cellar temperature or cooling performance.
The product coil pack sits within the refrigerated water bath, cooling the beer or other suitable beverage as it passes through the coils before travelling to the dispense point.
Installation
This is a commercial split cooling system consisting of separate base, coil pack and heat dump components and requires appropriate installation.
Correct positioning, ventilation and connection of the components are important for efficient operation. Installation should be carried out by a suitably experienced person familiar with commercial draught dispense and remote cooling equipment.
If you're unsure whether this cooler is suitable for your installation, please contact us before ordering.
Delivery
Due to the size and weight of the complete system, delivery will be made by pallet service.
Please ensure there is suitable access for a pallet delivery and someone is available to receive the goods.
Collection is also available from our Sunderland premises.
