DMfit 3/8" Tube x 5/8" BSP Female Adaptor (Small Cone)

DMfit 3/8" Tube x 5/8" BSP Female Adaptor (Small Cone)

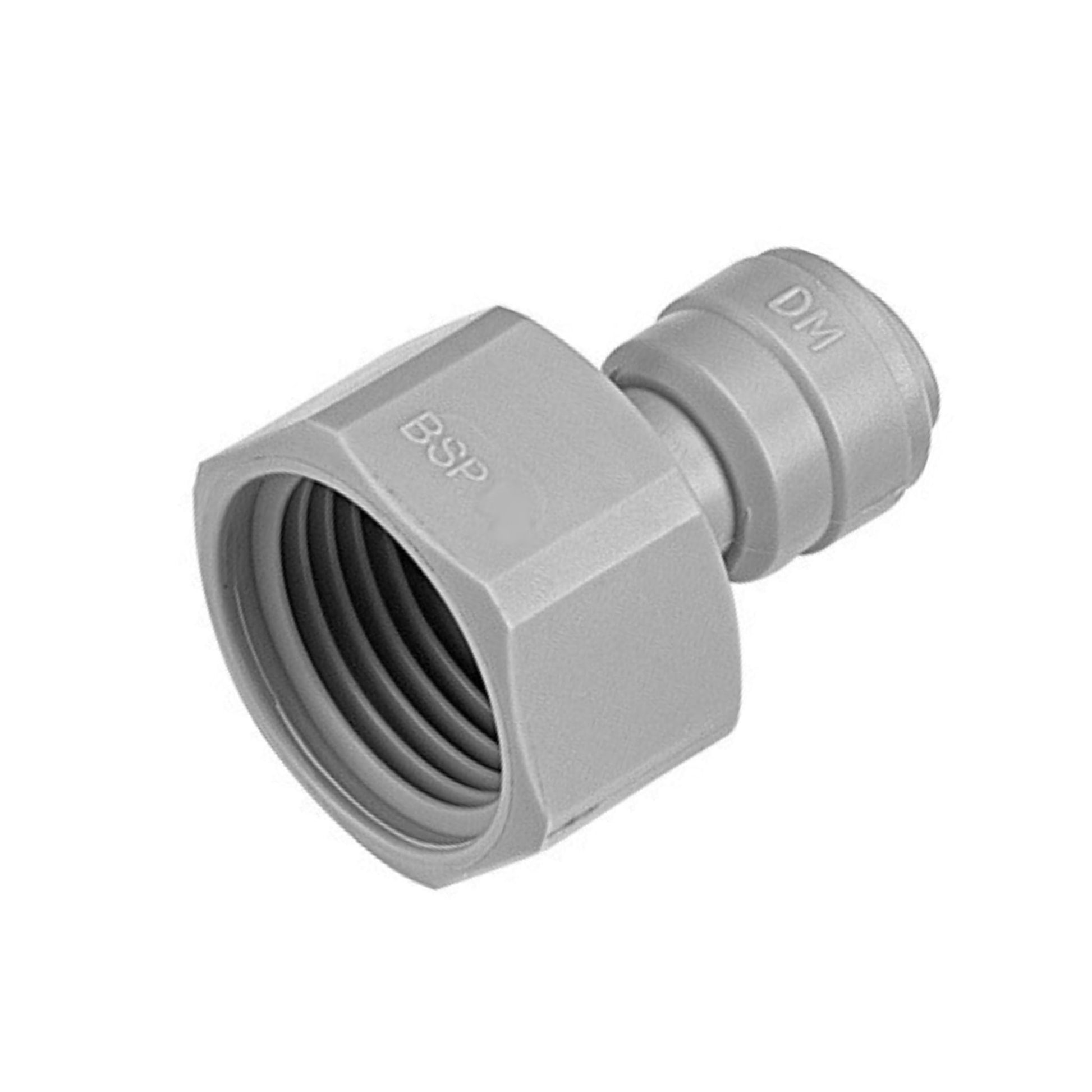

This DMfit 3/8" push-fit x 5/8" BSP female adaptor is designed to connect 3/8" tubing to compatible equipment with a 5/8" BSP male thread using a small cone sealing face.

Manufactured from food-grade acetal, it provides a secure push-fit connection without the need for clips or specialist tools, making it suitable for beer dispense, beverage and water applications.

The push-fit design allows tubing to be installed and removed quickly, making it ideal for both new installations and routine maintenance.

Features

• Suitable for 3/8" tubing
• 5/8" BSP female thread
• Small cone sealing face
• Food-grade acetal construction
• Quick push-fit connection
• Reusable design
• Suitable for beer dispense and beverage systems

Typical Applications

Commonly used on:

• Beer dispense systems
• Beer taps
• Beer fonts
• Beverage dispense equipment
• Cellar installations
• Home bar systems

Specifications

• Tube Size: 3/8"
• Thread: 5/8" BSP Female
• Seal Type: Small Cone
• Connection: Push-Fit
• Material: Food Grade Acetal
• Manufacturer: DMfit

Frequently Asked Questions

What tubing does this adaptor fit?

This adaptor is designed for 3/8" outside diameter tubing.

What does 'small cone' mean?

The adaptor seals against equipment that uses a small cone seating rather than a flat washer. Always check that your equipment has the correct sealing face before ordering.

Do I need PTFE tape?

The 5/8" BSP thread secures the fitting, while the seal is created by the small cone seating. PTFE tape is not normally required on the sealing face, although installation requirements may vary depending on the equipment being connected.

Can I remove and reuse the fitting?

Yes. The push-fit connection allows the tubing to be removed using the release collar, making the fitting reusable for maintenance or modifications.
