Equal Elbow 1/2" (JG)

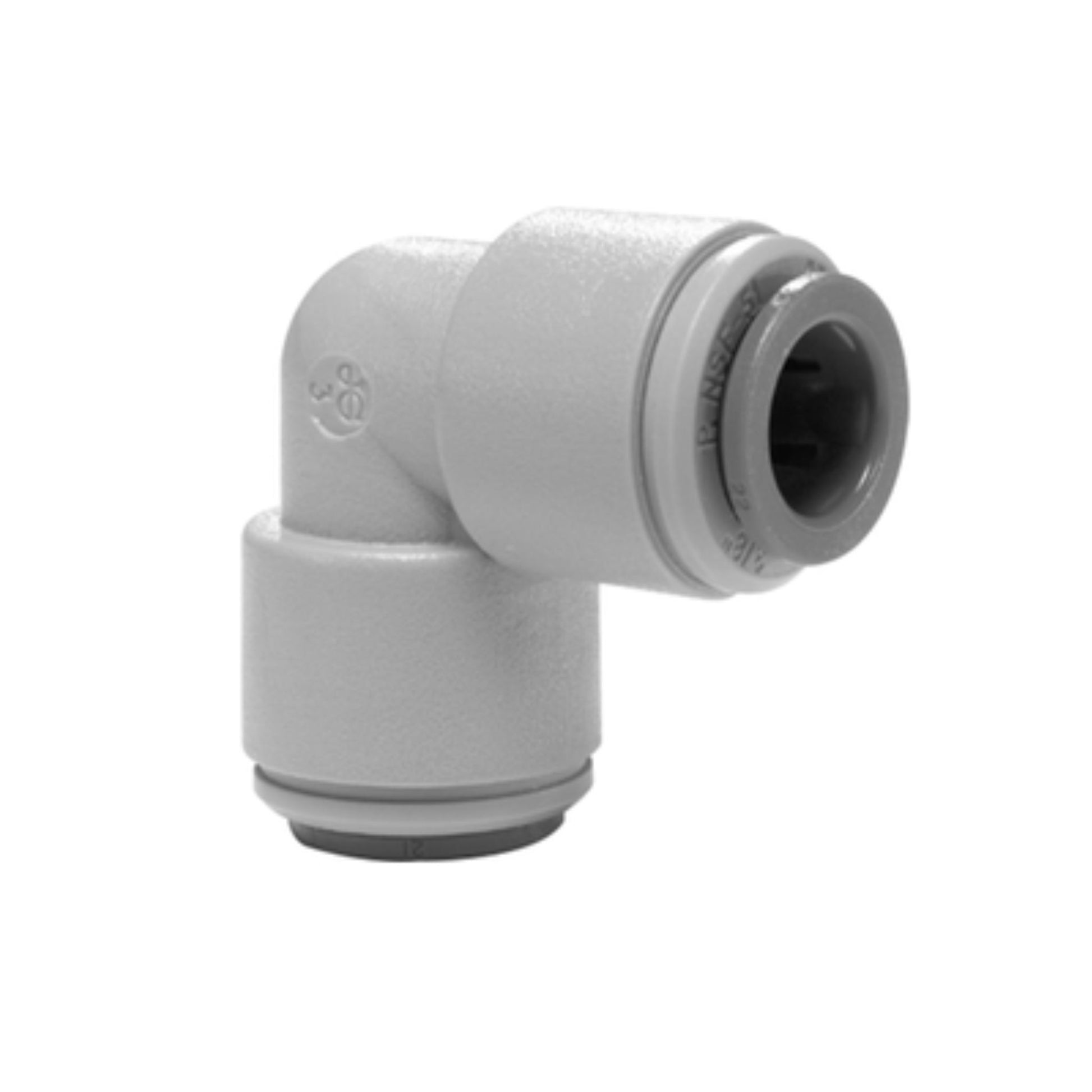

John Guest 1/2" Equal Elbow Push-Fit Connector

Genuine John Guest 1/2" equal elbow for connecting two lengths of 1/2" tubing at a 90-degree angle.

This push-fit fitting provides a simple way to change the direction of tubing without using a tight bend in the line. Suitable for draught beer, beverage and other compatible potable-liquid installations.

Ideal for new installations, repairs and alterations to existing dispense systems.

Product details

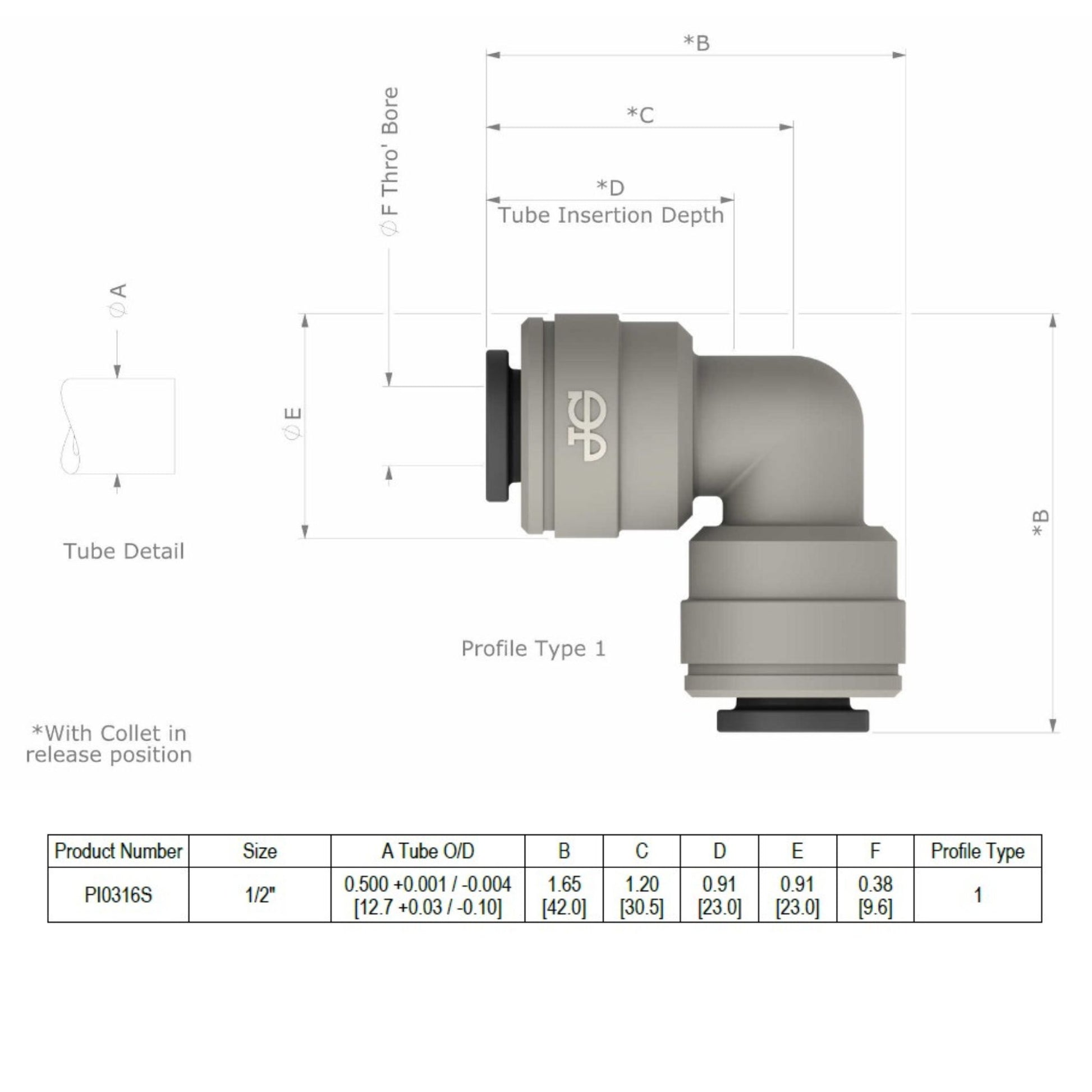

• Size: 1/2" × 1/2"
• Equal 90° elbow connector
• John Guest part number: PI0316S
• Manufactured by John Guest
• Push-fit connection
• Suitable for potable liquids
• Minimum temperature: 1°C
• Maximum temperature: 65°C
• Maximum working pressure: 10 bar
• Maximum working pressure at 65°C: 7 bar

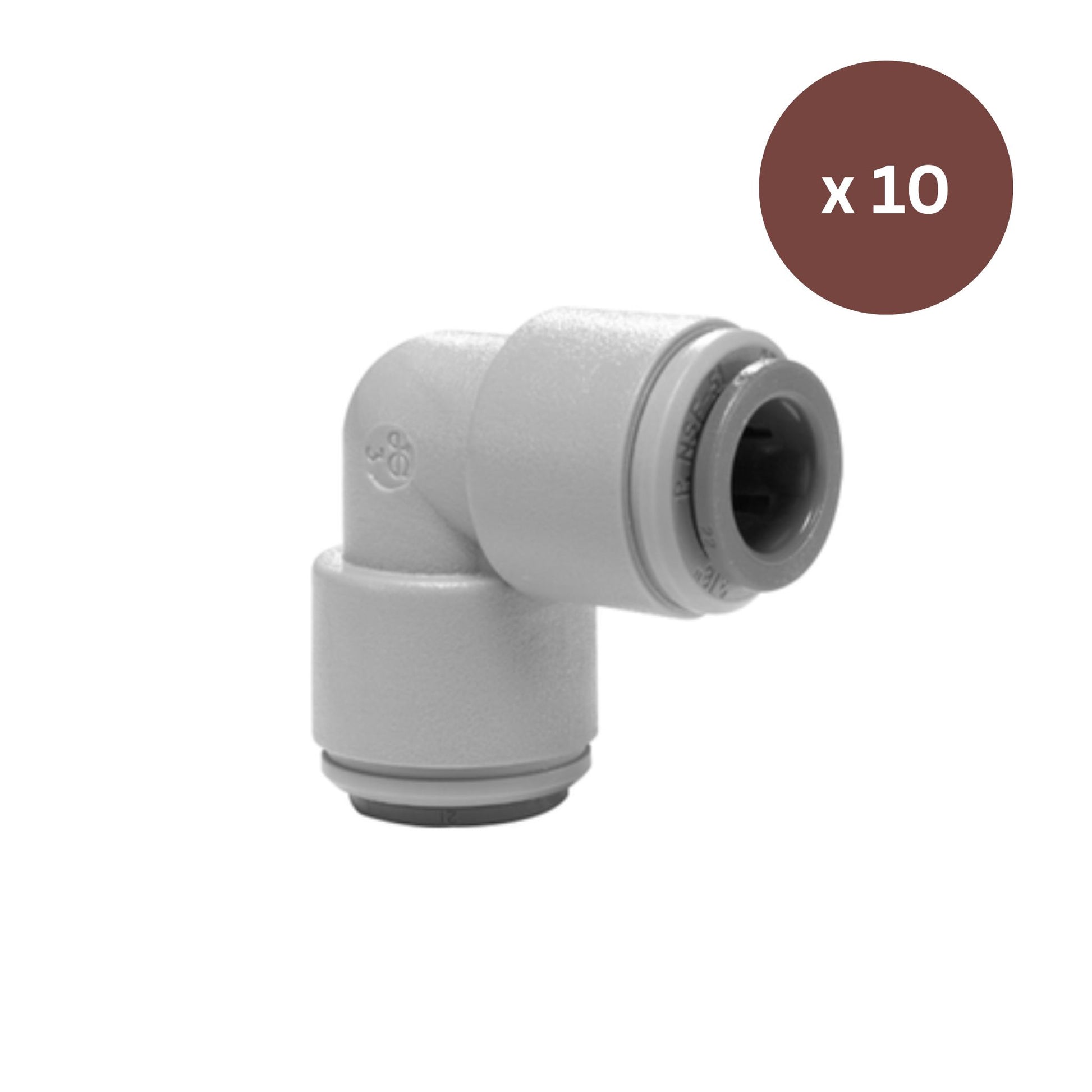

• Available individually or as a pack of 10

Typical uses

Ideal where two lengths of 1/2" tubing need to be connected with a 90-degree change of direction in beer, beverage and bar dispense installations.

Please check the outside diameter of your tubing before ordering. Both connections are designed for 1/2" tubing.
