Shelf Cooler 2 Coil

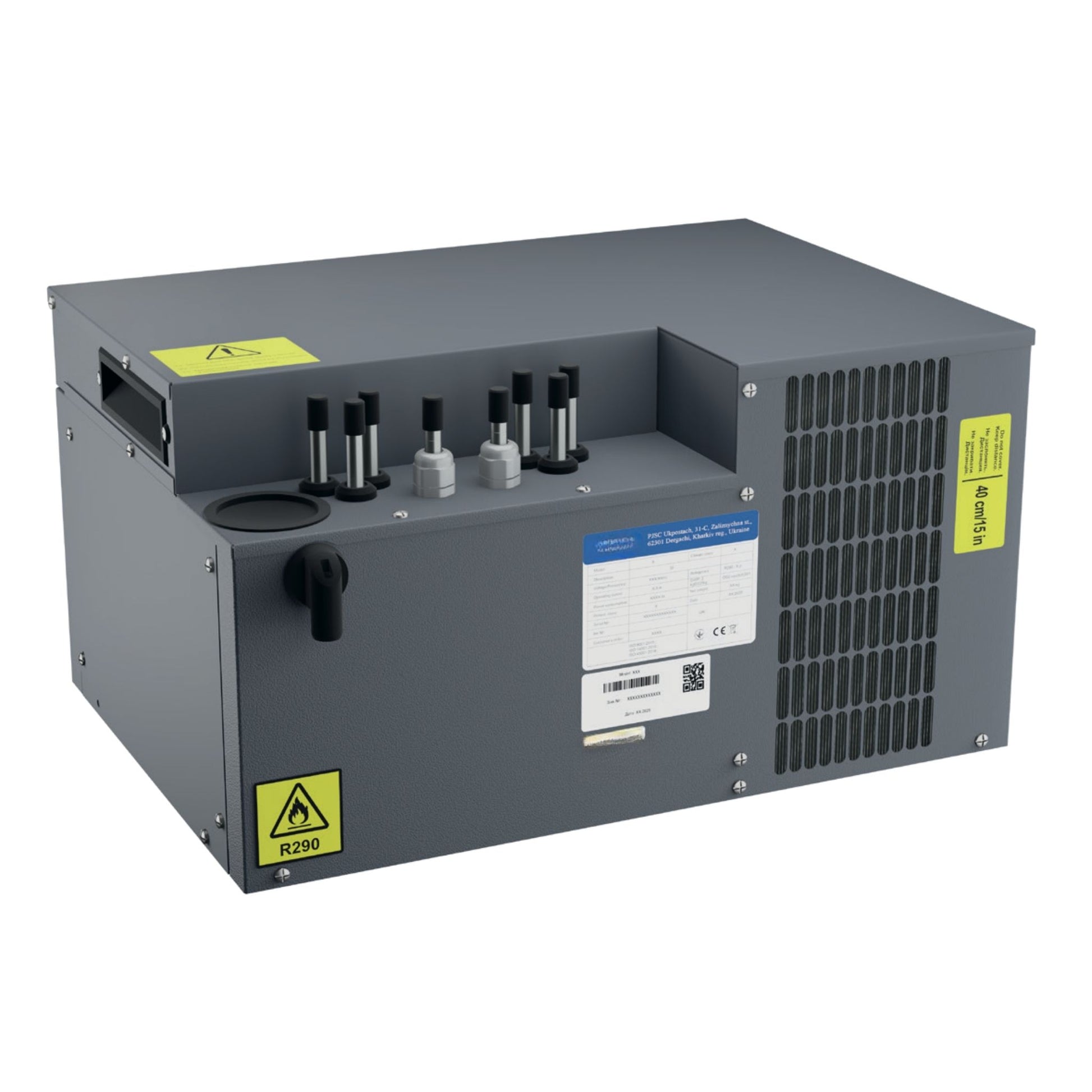

H-20 Shelf Cooler – Twin Coil Beer Cooler

The H-20 shelf cooler is a compact and reliable beer cooling unit designed for use in drinks dispense systems where beer needs to be cooled quickly and maintained at a consistent serving temperature. Shelf coolers are commonly used in pubs, bars, mobile bars and home bar installations where the cooler sits below the counter or close to the point of dispense.

This model features two cooling coils, allowing multiple beer lines to be cooled efficiently. The integrated water bath and ice bank system helps maintain a stable temperature, ensuring beer is served cold and consistently during operation.

With its compact footprint and dependable cooling performance, the H-20 is suitable for smaller bar installations, event bars or home bar systems where space is limited but reliable cooling is required.

Key Features

• Compact under-counter shelf cooler
• Twin 7m cooling coils
• Suitable for beer dispense systems and home bars
• Integrated water bath and ice bank cooling
• Built-in recirculation pump

Technical Specifications

Model: H-20
Cooling coils: 2 × 7 m
Water bath capacity: 12 L
Ice bank: 5.5 kg

Compressor:
3.1 cc (1/10 HP)

Cooling power:
258 W (221 kCal/h)

Power consumption:
228 W

Net weight:
25 kg

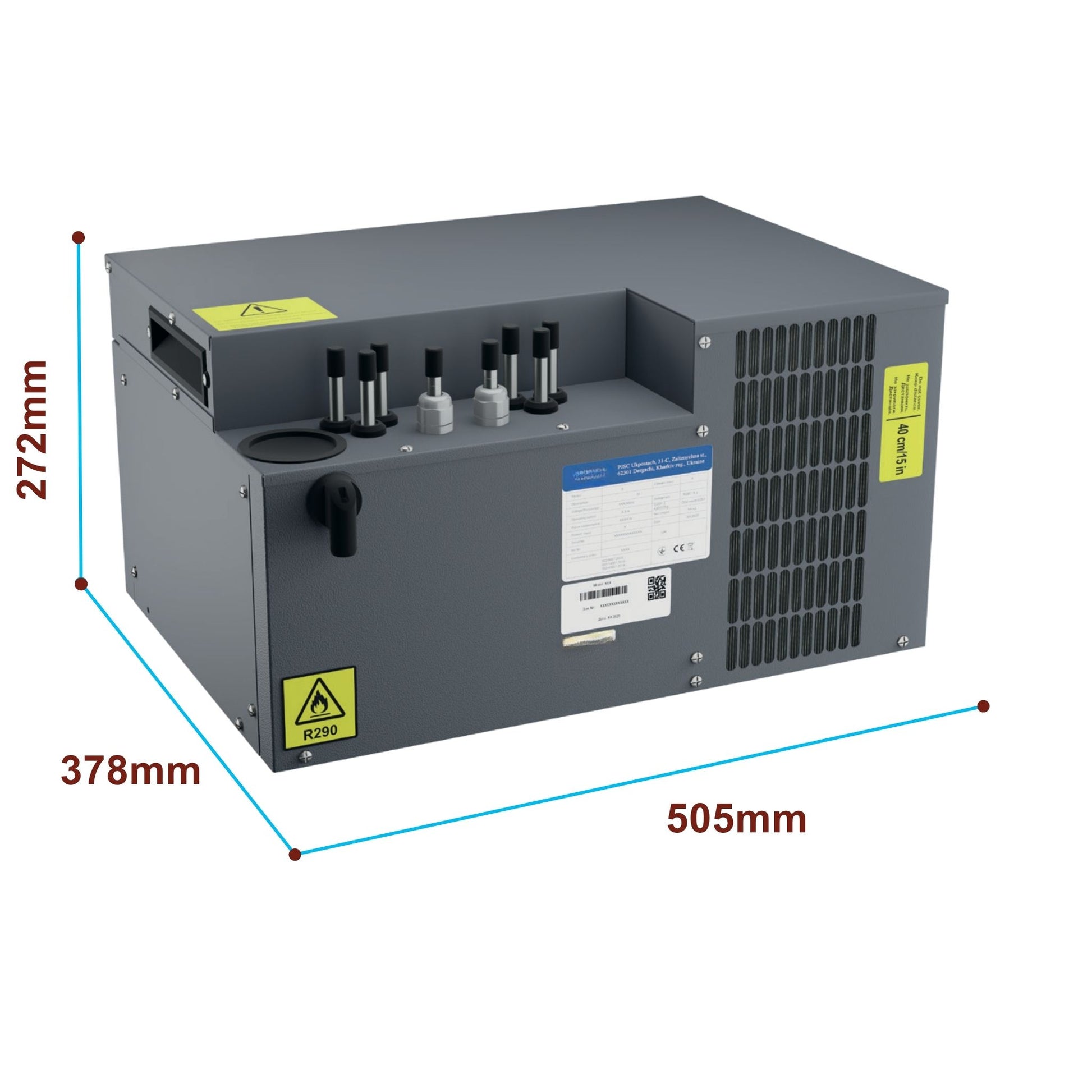

Dimensions:
Height: 272 mm
Width: 505 mm
Depth: 378 mm

Choosing the Right Shelf Cooler

The size of beer cooler required depends on the number of taps being used and the length of the beer lines. Smaller shelf coolers are typically suitable for home bars or installations with one or two taps, while larger models can support multiple lines in busy bar environments.

If you are unsure which cooler is suitable for your setup, please contact us and we will be happy to advise.
