H-30 Shelf Cooler – Four Coil Beer Cooler

The H-30 shelf cooler is a powerful and compact beer cooling unit designed for use in professional drinks dispense systems. Shelf coolers are typically installed beneath a bar or close to the point of dispense, where they rapidly chill beer before it reaches the tap.

This model is equipped with four cooling coils, making it suitable for installations where multiple beer lines need to be cooled simultaneously. The integrated water bath and ice bank system helps maintain stable cooling performance, ensuring beer is delivered at the correct serving temperature during busy service periods.

With its robust build and dependable cooling capacity, the H-30 shelf cooler is well suited to pubs, bars, taprooms, mobile bars and larger home bar setups requiring reliable beer cooling.

Key Features

• Compact under-counter shelf cooler
• Four 7.5 m cooling coils
• Designed for multi-line beer dispense systems
• Integrated water bath and ice bank cooling
• Built-in recirculation pump

Technical Specifications

Model: H-30
Cooling coils: 4 × 7.5 m

Water bath capacity:
17 L

Ice bank:
7 kg

Compressor:
4.5 cc (1/5 HP)

Cooling power:
377 W (324 kCal/h)

Power consumption:
240 W

Net weight:
26 kg

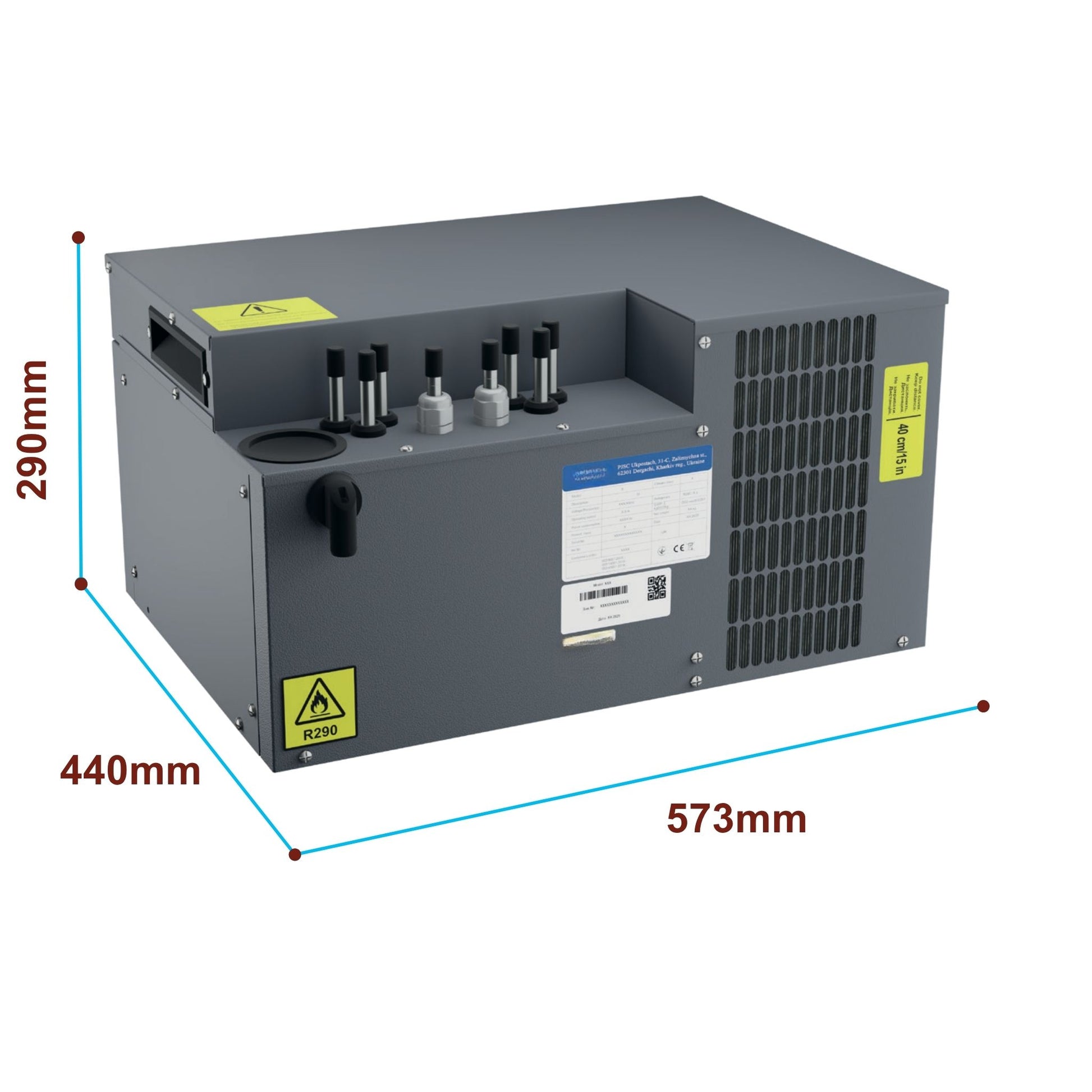

Dimensions:
Height: 290 mm
Width: 573 mm
Depth: 440 mm

Choosing the Right Shelf Cooler

The size of beer cooler required depends on the number of taps being used and the length of the beer lines. Smaller shelf coolers are typically suitable for home bars or installations with one or two taps, while larger models can support multiple lines in busy bar environments.

If you are unsure which cooler is suitable for your setup, please contact us and we will be happy to advise.
