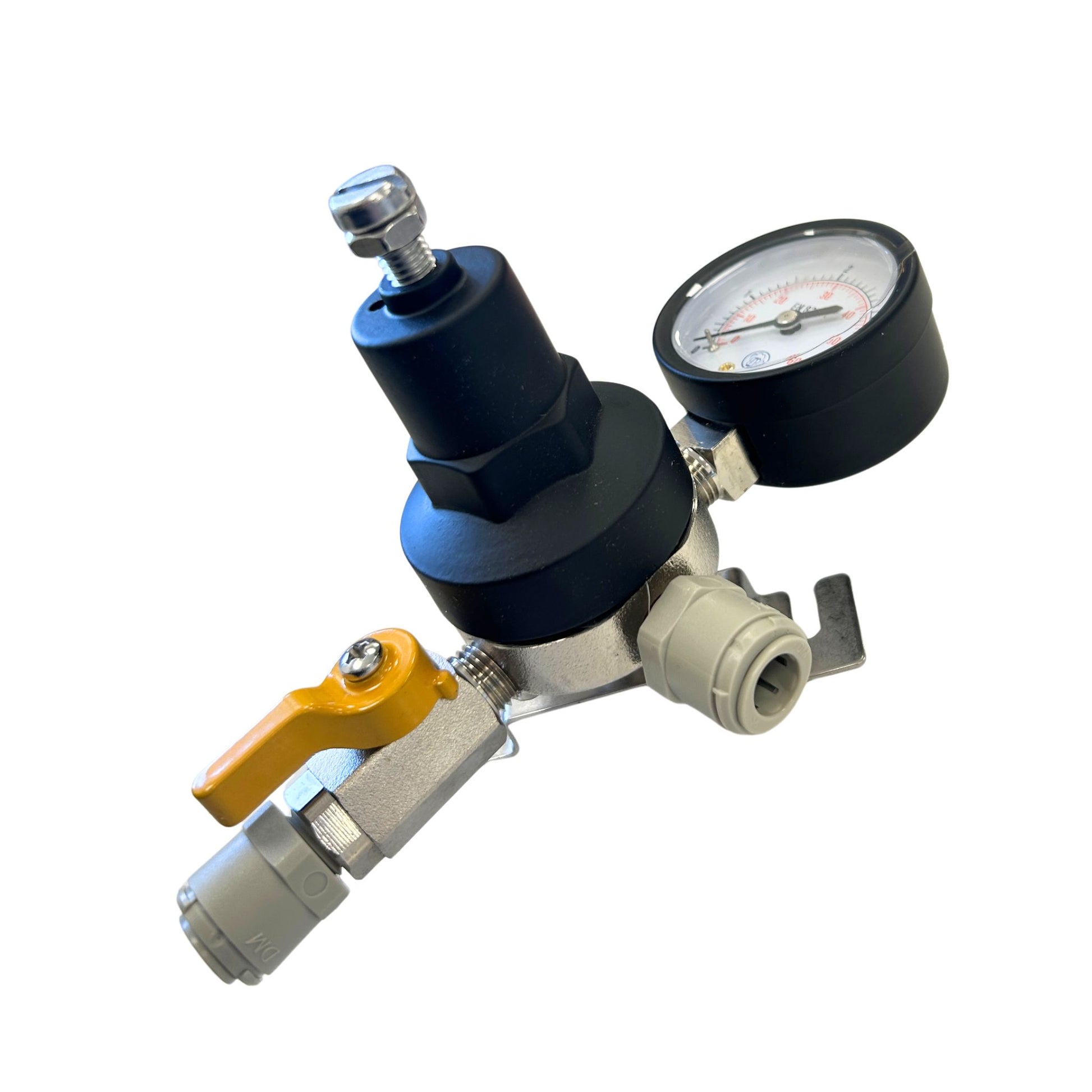

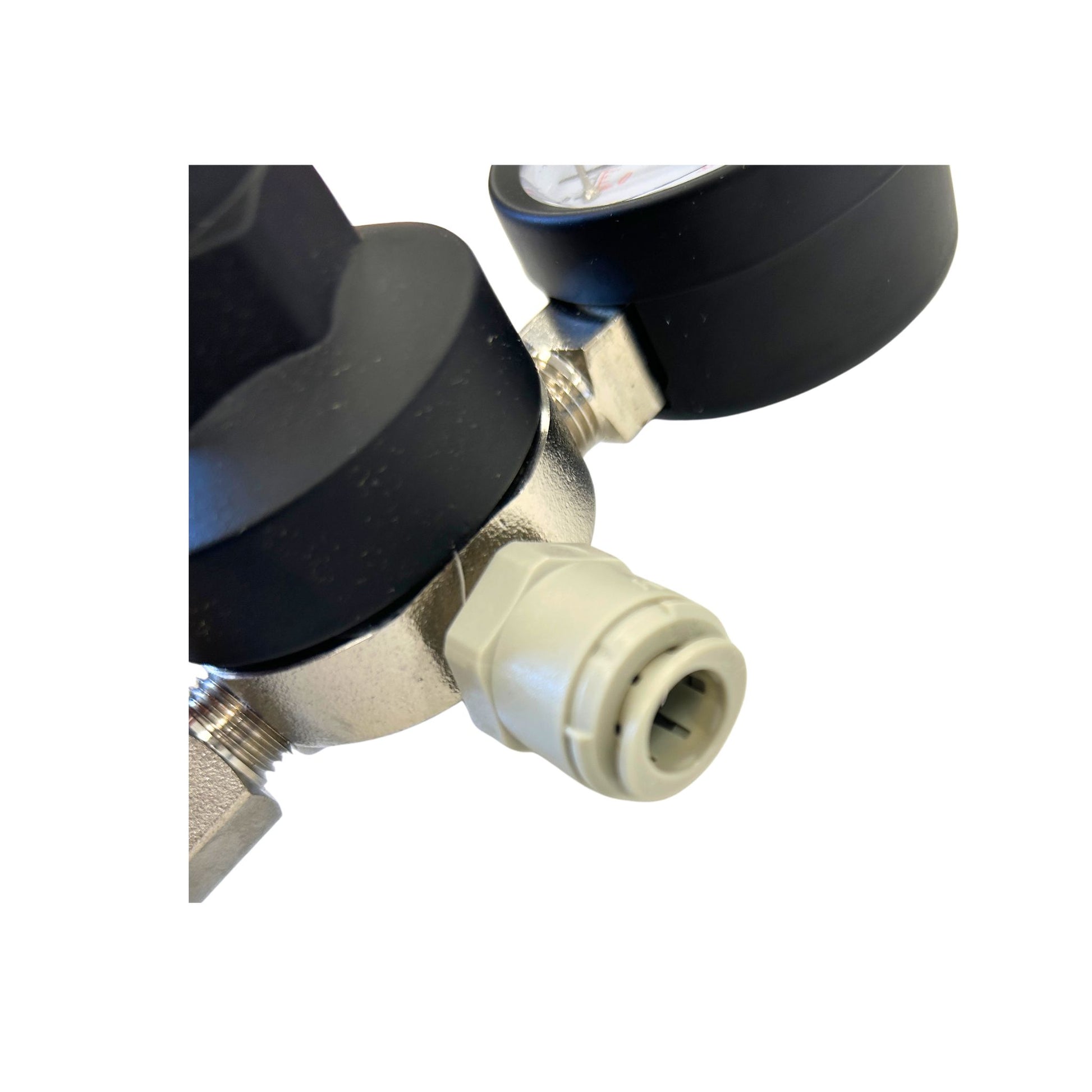

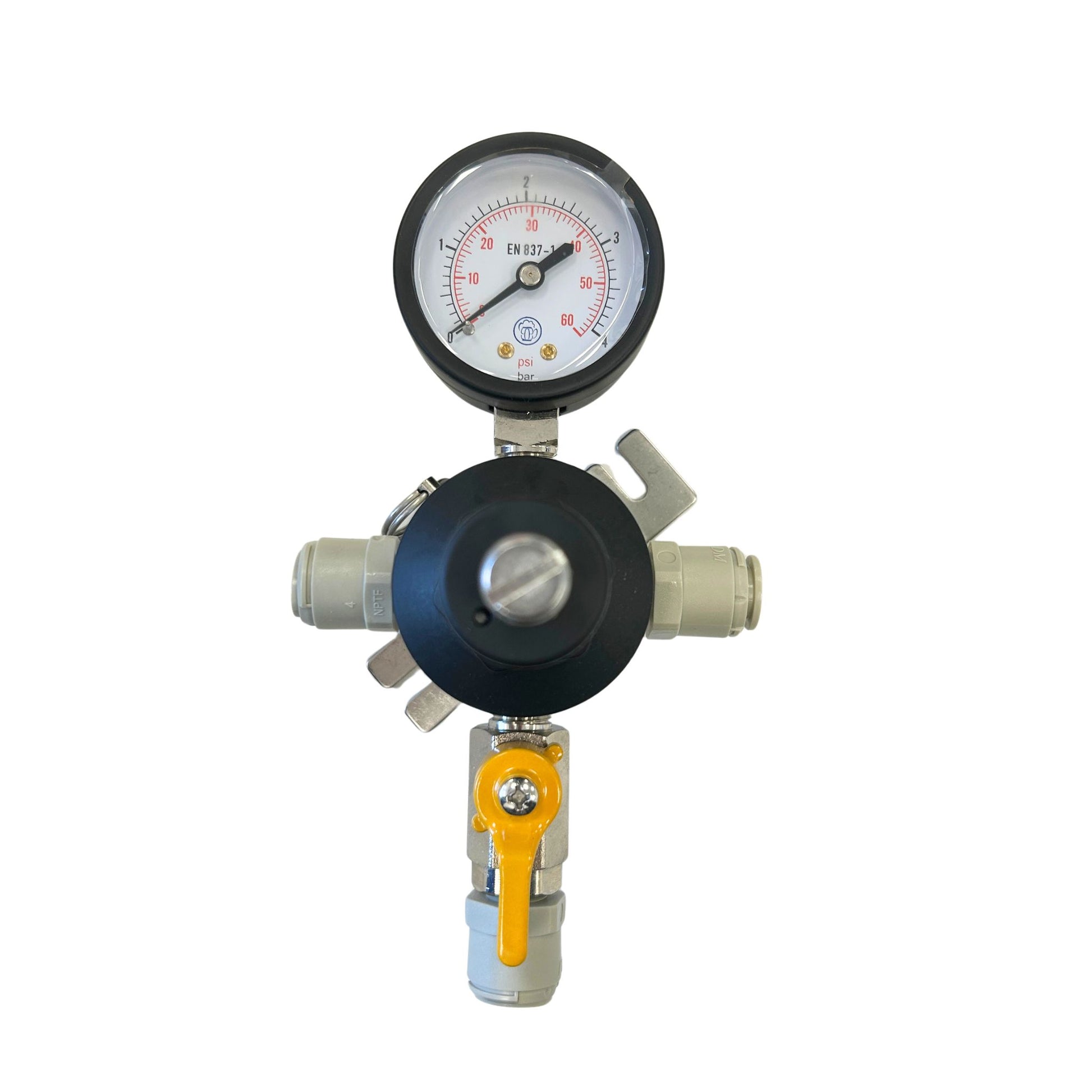

Secondary Regulator with Pressure Gauge - Type B

Secondary Regulator with Pressure Gauge

This secondary regulator with pressure gauge is designed to provide accurate control of gas pressure to individual keg lines and dispense systems. Installed downstream of the primary regulator, it acts as a pressure reducing valve, allowing you to fine-tune and maintain the correct dispense pressure for each product.

Suitable for use with both CO₂ and mixed gas systems, these regulators are ideal for home bars, mobile bars, breweries, pubs, clubs and commercial cellar installations.

The integrated pressure gauge allows quick and easy monitoring of outlet pressure, helping maintain a consistent dispense and reducing issues such as excessive foaming or poor product flow.

Key Features

• Suitable for CO₂ and mixed gas systems
• Integrated pressure gauge
• Accurate pressure adjustment
• Robust commercial-grade construction
• Ideal for home bars and professional installations
• Available in multiple configurations
• Suitable for individual keg lines or multi-product systems

Why Use a Secondary Regulator?

A secondary regulator allows you to accurately control the gas pressure supplied to each keg line. Installed after the primary regulator, it helps maintain a stable dispense pressure at the point of use and provides greater control over your overall dispense system.

The correct dispense pressure depends on a number of factors, including:

• Product storage temperature
• Beer style or beverage type
• Gas blend being used
• Length and diameter of the dispense line
• Distance between the keg and dispense point

By adjusting each line individually, a secondary regulator helps improve dispense performance, reduce wastage and maintain product quality.

Running Multiple Kegs from One Gas Bottle

Secondary regulators are particularly beneficial when running multiple products from a single gas cylinder.

For the best results, we recommend feeding secondary regulators from a correctly sized gas ring main or distribution system. This helps maintain a stable gas supply throughout the installation and minimises pressure drop when several products are being dispensed at the same time.

Suitable for Home Bars and Commercial Systems

These regulators are suitable for both home bar and commercial dispense systems. When installing any compressed gas system, cylinders should always be secured using suitable restraints and stored in a well-ventilated area. All gas connections should be checked regularly for leaks and maintained in accordance with manufacturer recommendations.

Frequently Asked Questions

What is a secondary regulator?

A secondary regulator, sometimes referred to as an SRV (Secondary Reducing Valve), is used to reduce and control the gas pressure supplied to a keg line. It is installed downstream of the primary regulator and allows you to set and maintain a consistent working pressure for each individual keg or dispense line.

Do I need a secondary regulator?

While some simple systems operate directly from a primary regulator, we strongly recommend fitting a secondary regulator wherever possible. Secondary regulators provide greater control over dispense pressure and allow products to be served at their optimum pressure.

What pressure should I set my regulator to?

There is no single pressure suitable for every installation. The ideal setting depends on factors such as product temperature, gas blend, beer style, line length and the overall dispense setup.

What is the difference between a primary regulator and a secondary regulator?

A primary regulator is connected directly to the gas cylinder and safely reduces the high cylinder pressure to a manageable system pressure. Primary regulators are fitted with pressure relief devices to protect against over-pressurisation.

A secondary regulator is installed after the primary regulator and is used to fine-tune the pressure supplied to individual keg lines or products.

In simple terms:

Primary regulator (Mixed Gas) or (CO2)= controls bottle pressure

Secondary regulator = controls dispense pressure

Can I run multiple products from one gas bottle?

Yes. Multiple products can be supplied from a single gas cylinder. For the best results, secondary regulators should be supplied from a correctly sized gas distribution system or ring main to help maintain consistent pressure throughout the installation.

Can this regulator be used with CO₂ and mixed gas?

Yes. These regulators are suitable for use with both pure CO₂ and mixed gas systems when installed correctly.

Is this regulator suitable for home bars?

Yes. Secondary regulators are an excellent choice for home bar installations, especially where multiple kegs are being served or greater control over dispense pressure is required.

Do I need a pressure gauge?

A pressure gauge allows you to quickly monitor and adjust outlet pressure, making it easier to achieve a consistent dispense and diagnose any pressure-related issues within the system.
